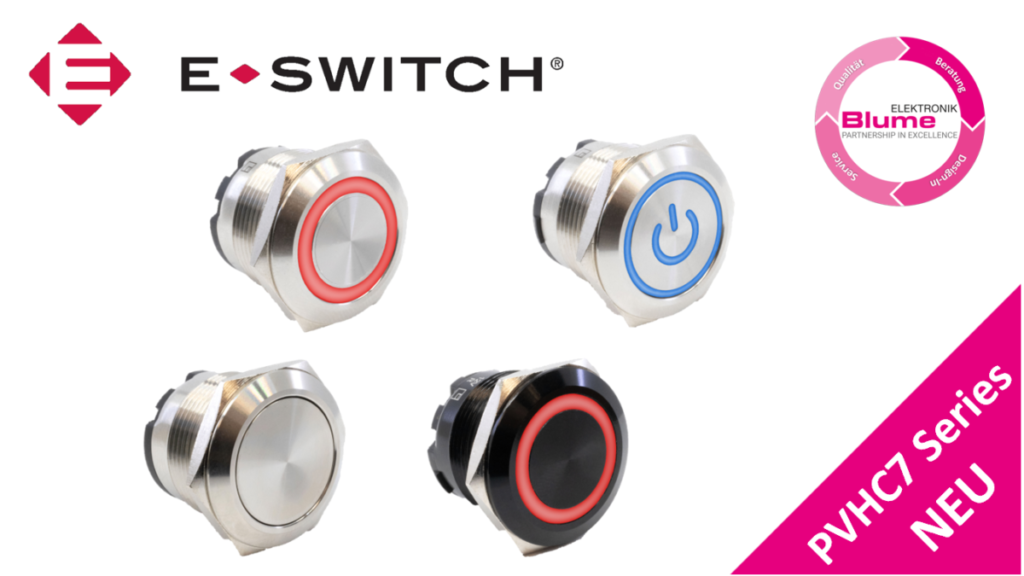

The PVHC7 Series Anti-Vandal Switch offers durability and security in a sleek and modern package. Reliability meets visual appeal with an IP67 rating, multiple function options and the ability to illuminate ring and power symbols.

Multiple LED colors are available for further customization. The electrical rating of this high current SPST switch is 20A at 250VAC.

SWITCH STANDARD FEATURES
The PVHC7 has a 22mm diameter panel cutout and a flat actuator that is either stainless steel or black anodized.

The housing finish can also be stainless steel or black anodized. Mechanical life is up to 1,000,000 cycles with an electrical life of 50,000 cycles and the switch has an operating temperature of -40 to +85°C.

Contact arrangement: SPST
Contact rating: 20A @ 250VAC
Contact resistance: 50mΩ Max
Insulation resistance: 100MΩ Min @ 500VD
Dielectric strength: 1,500VAC for 1 minute
Electrical life: 50,000 cycles
Mechanical life: 500,000 cycles latching; 1,000,000 cycles momentary
Operating temperature: -40°C to +85°C
Travel: 3.50mm
Protection against moisture: IP67
Actuating force: 6NPanel thickness: 6mm Max.
